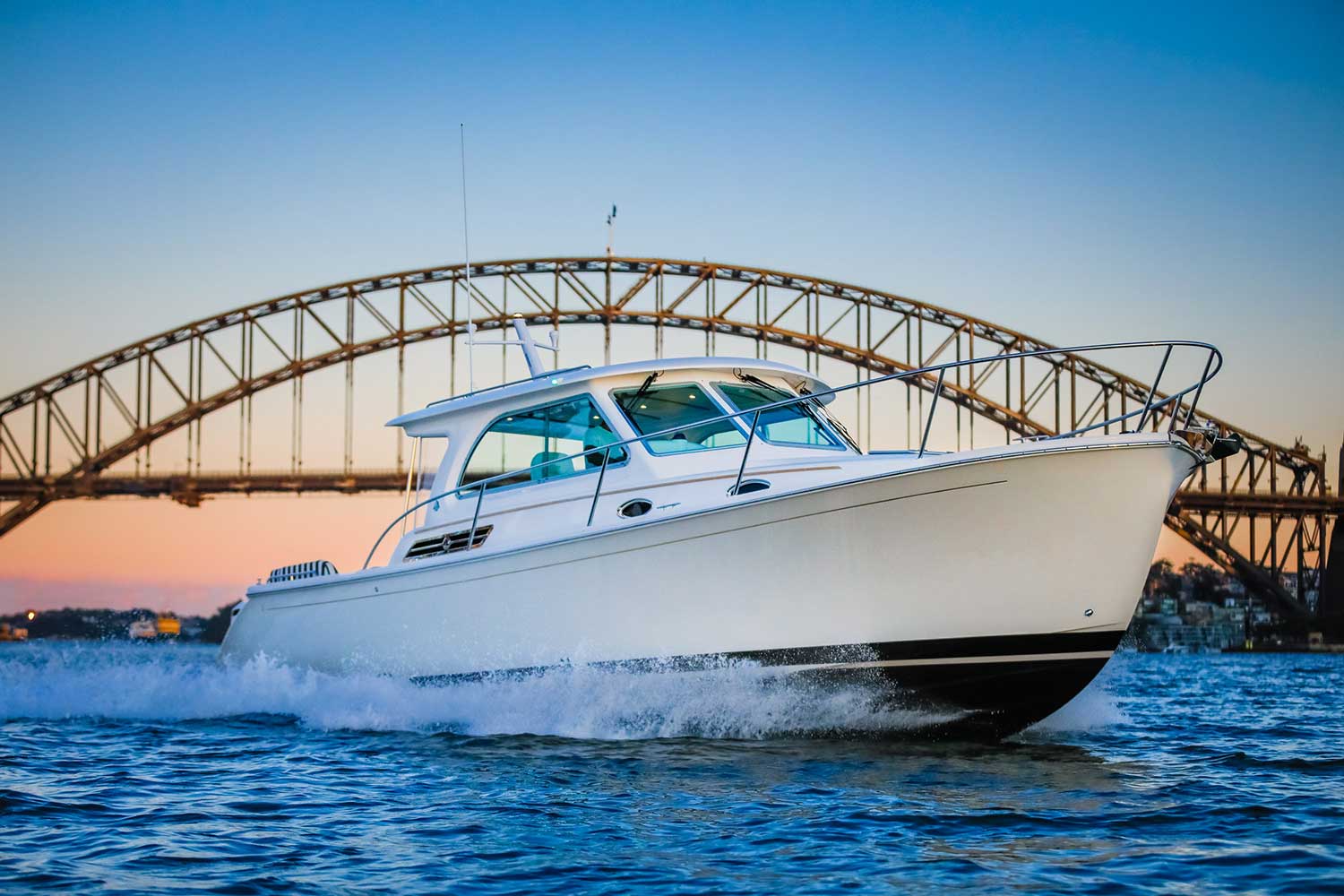

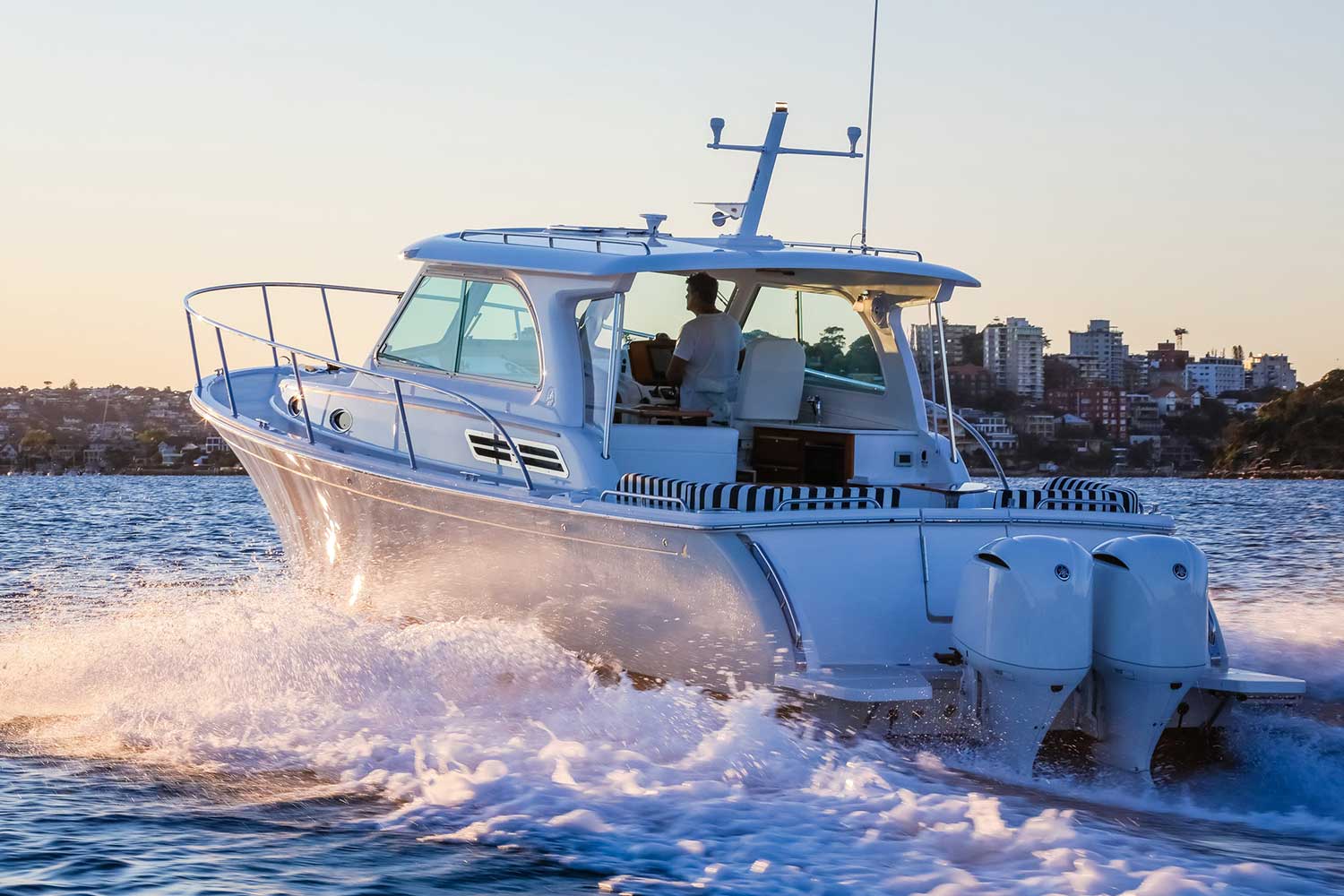

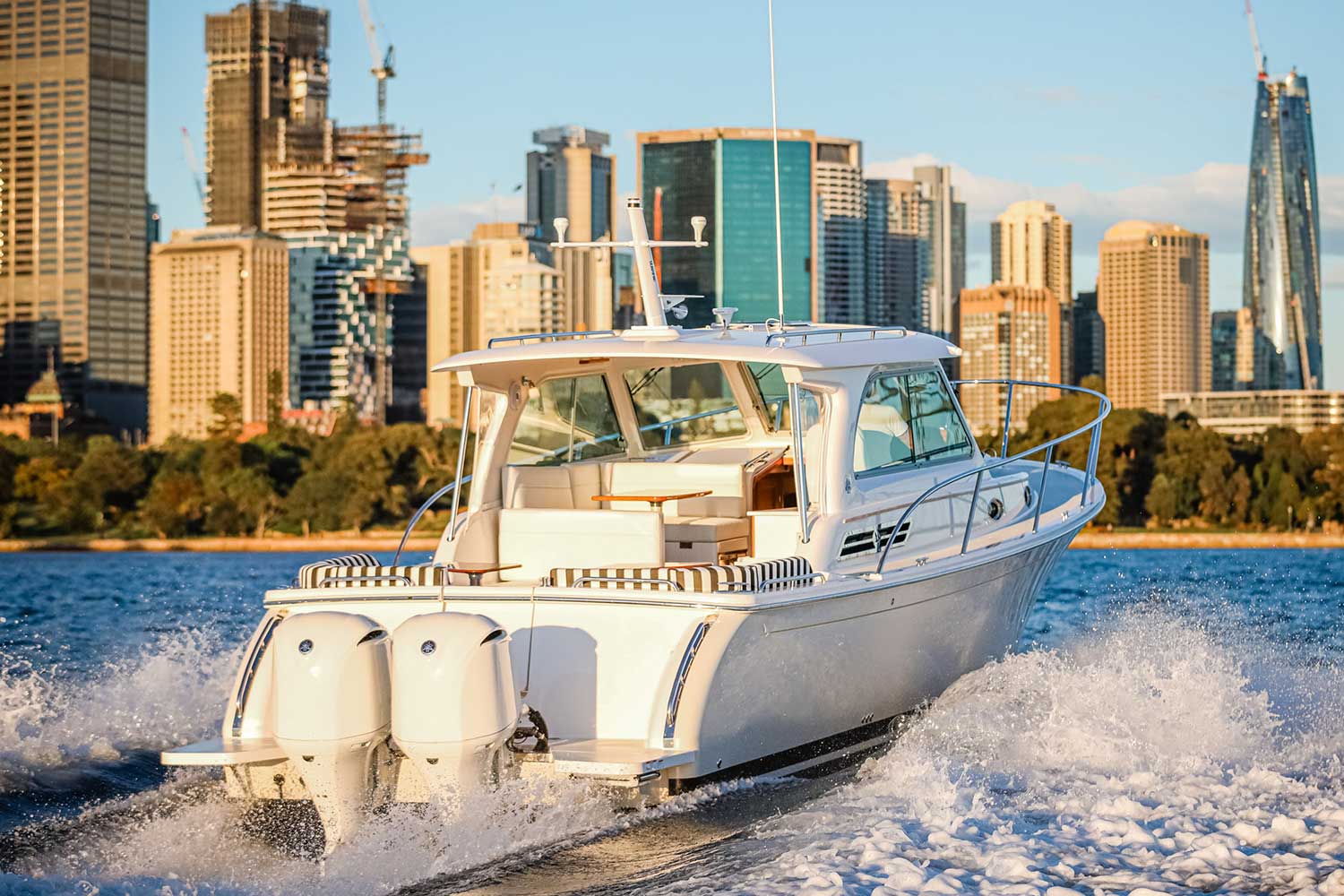

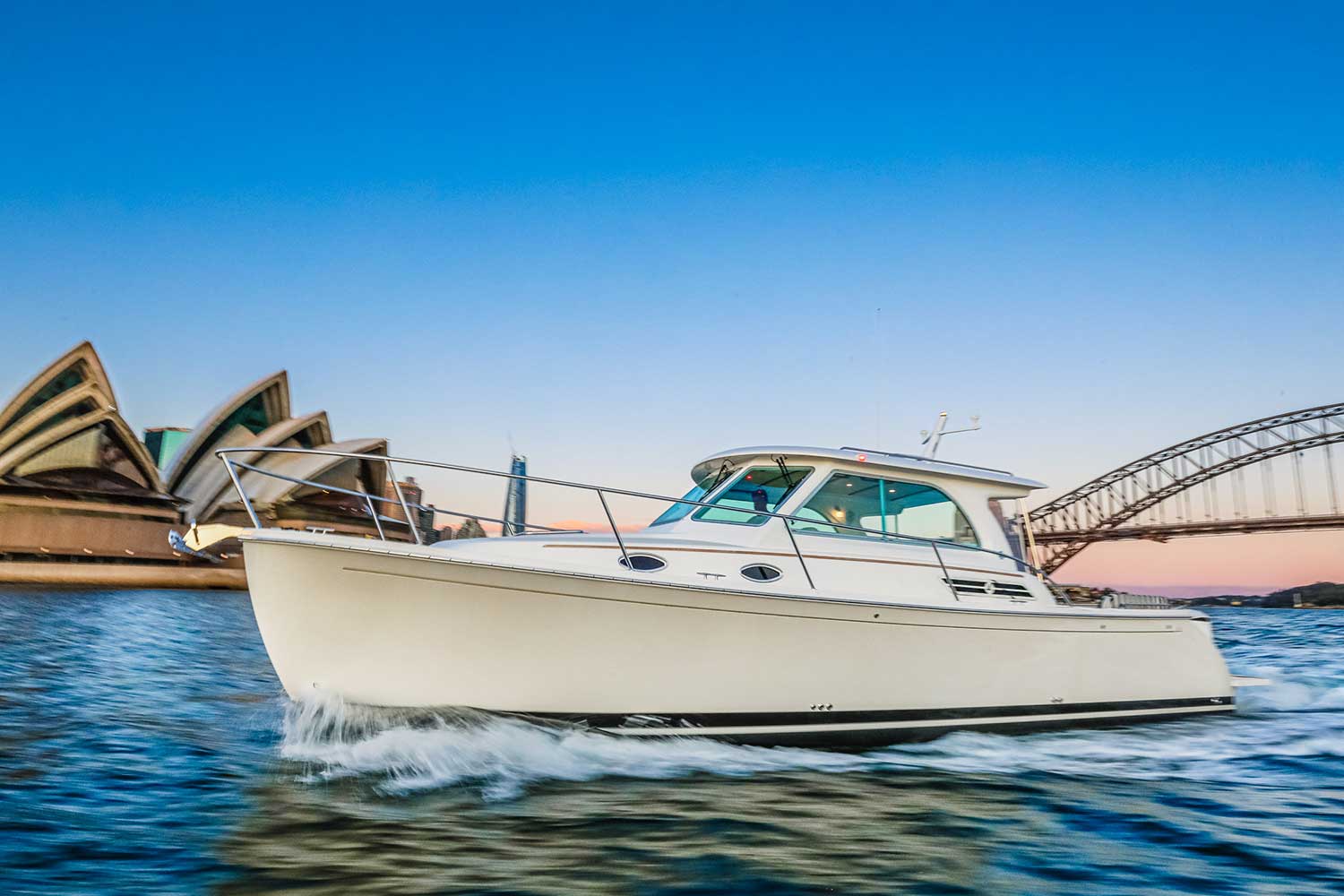

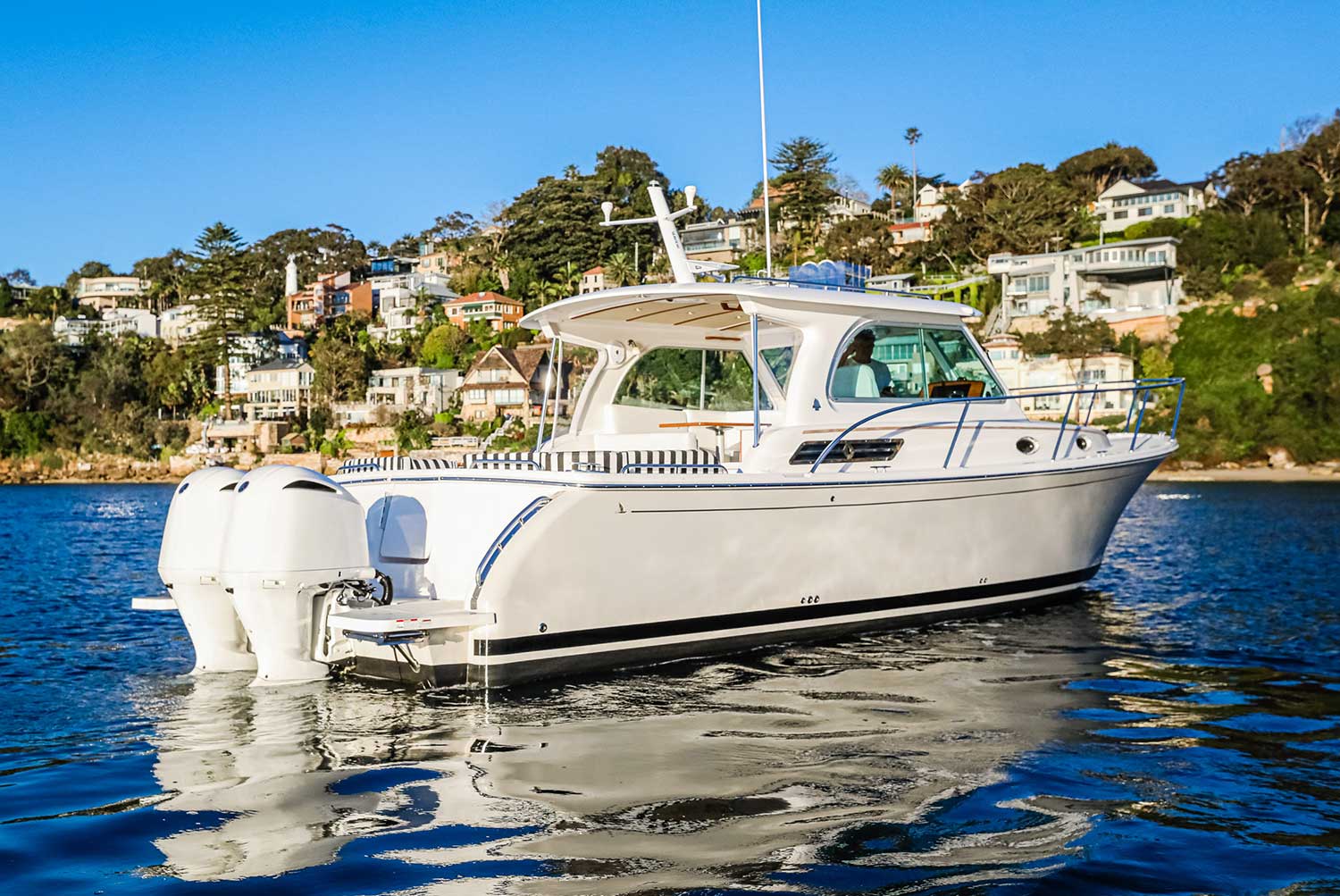

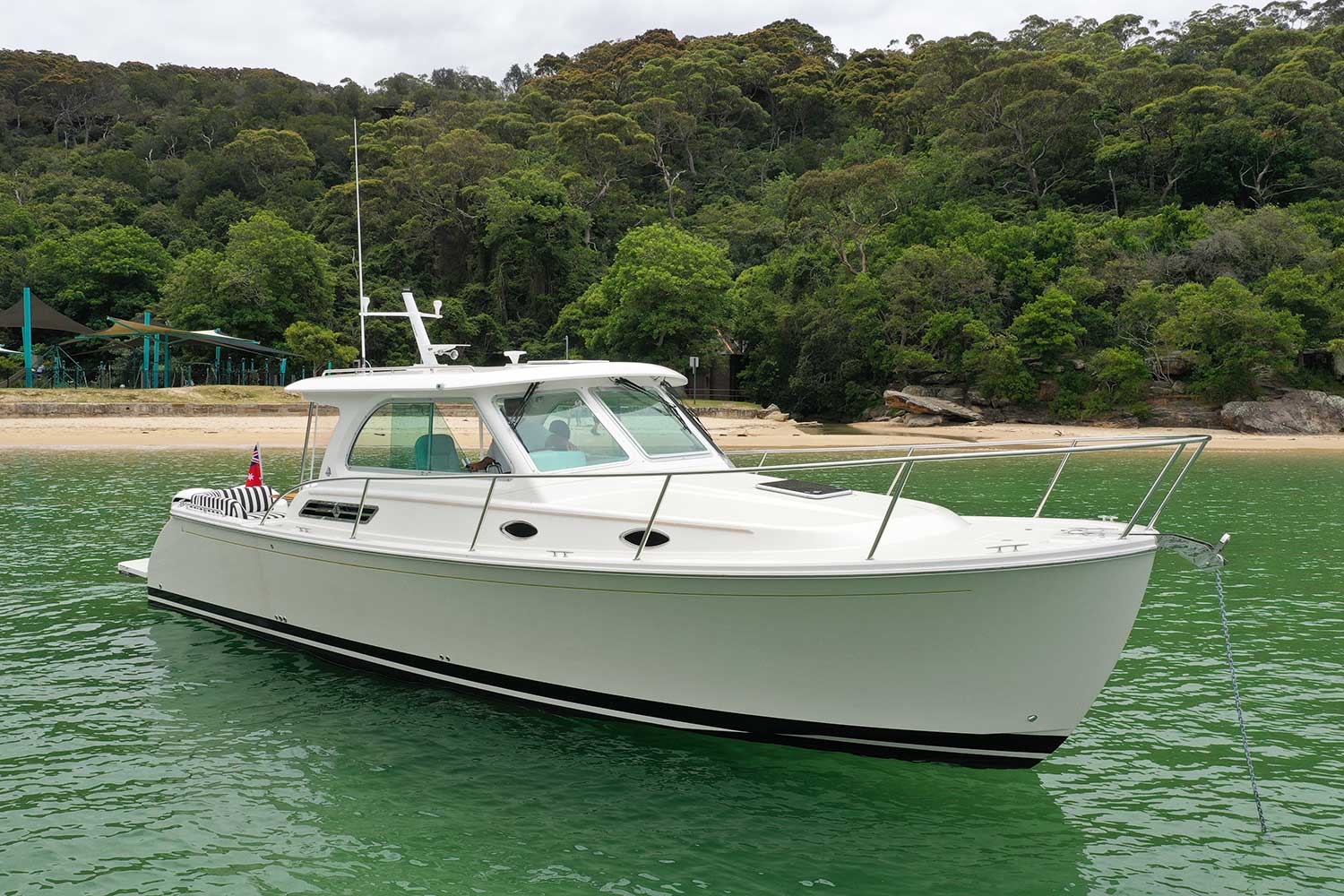

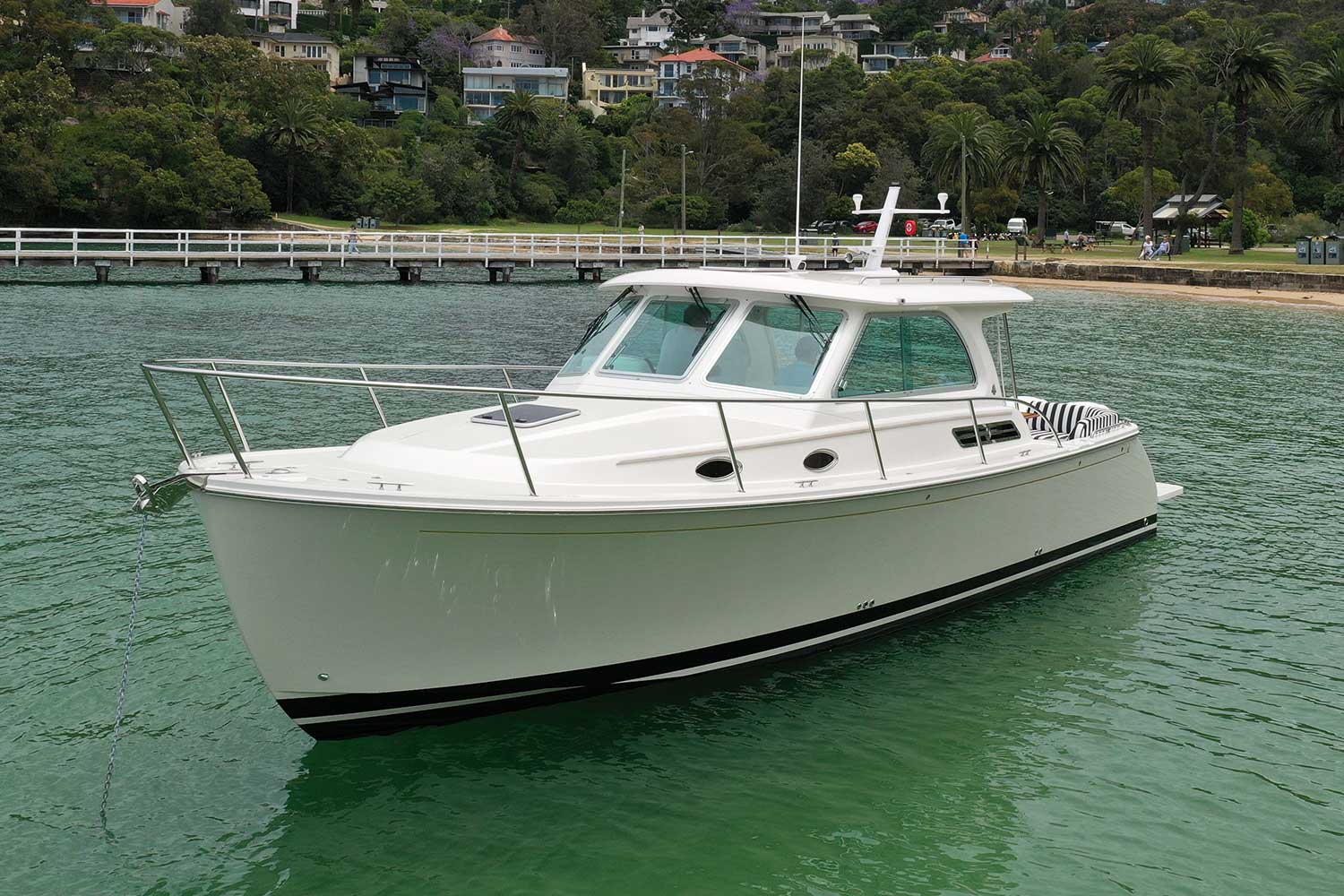

One owner 2020 BACK COVE 34O AVAILABLE NOW!

Lightly used and immaculately maintained. New to Market.

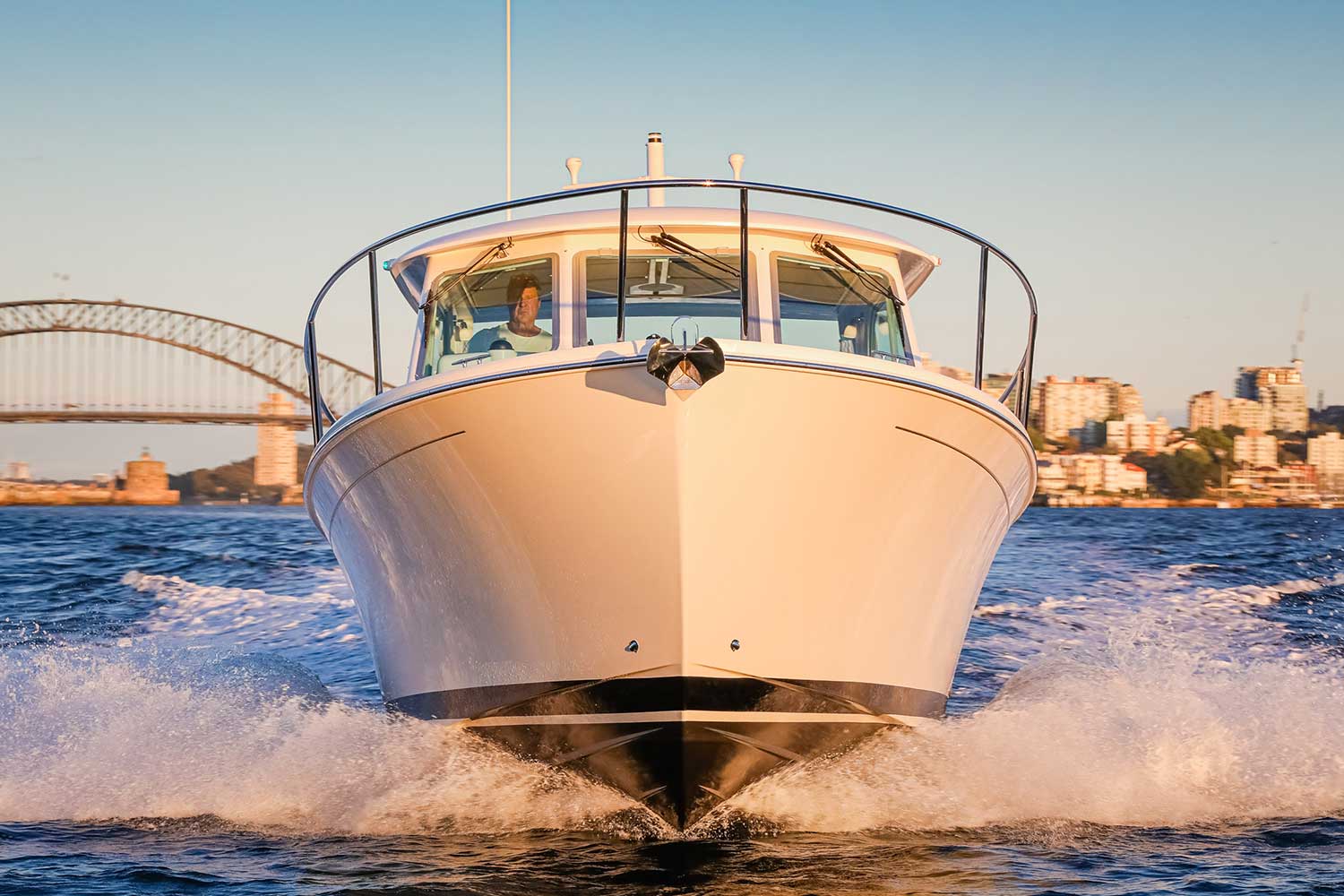

Its revolutionary hull design features Back Cove’s proprietary Trailing Edge Lifting Surface (TRELIS), which gets her on plane faster and requires less horsepower than traditional hull designs. Easy 30-knot cruise speed, the Back Cove 34O will extend your cruising grounds, bringing new destinations within range and reducing travel time.

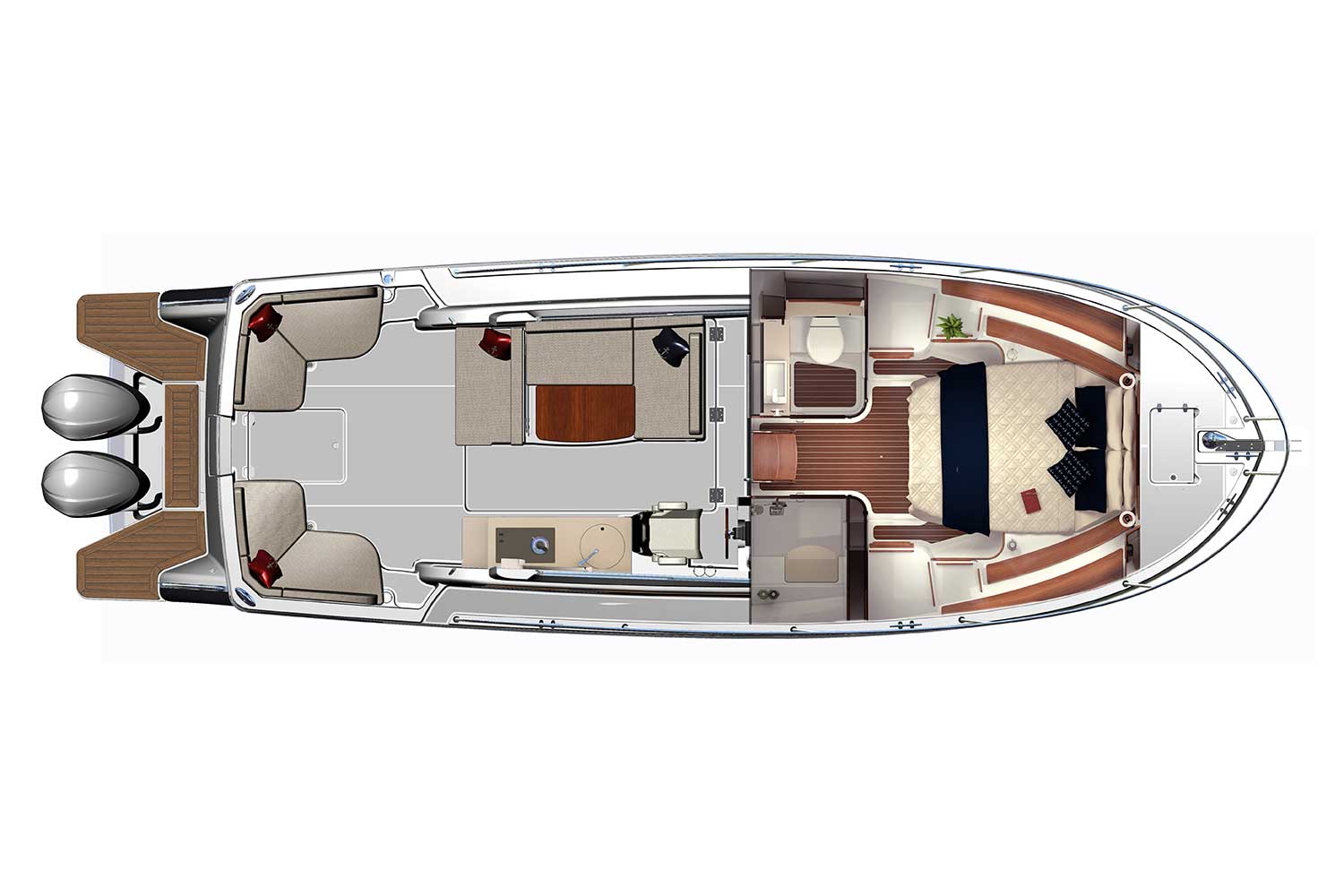

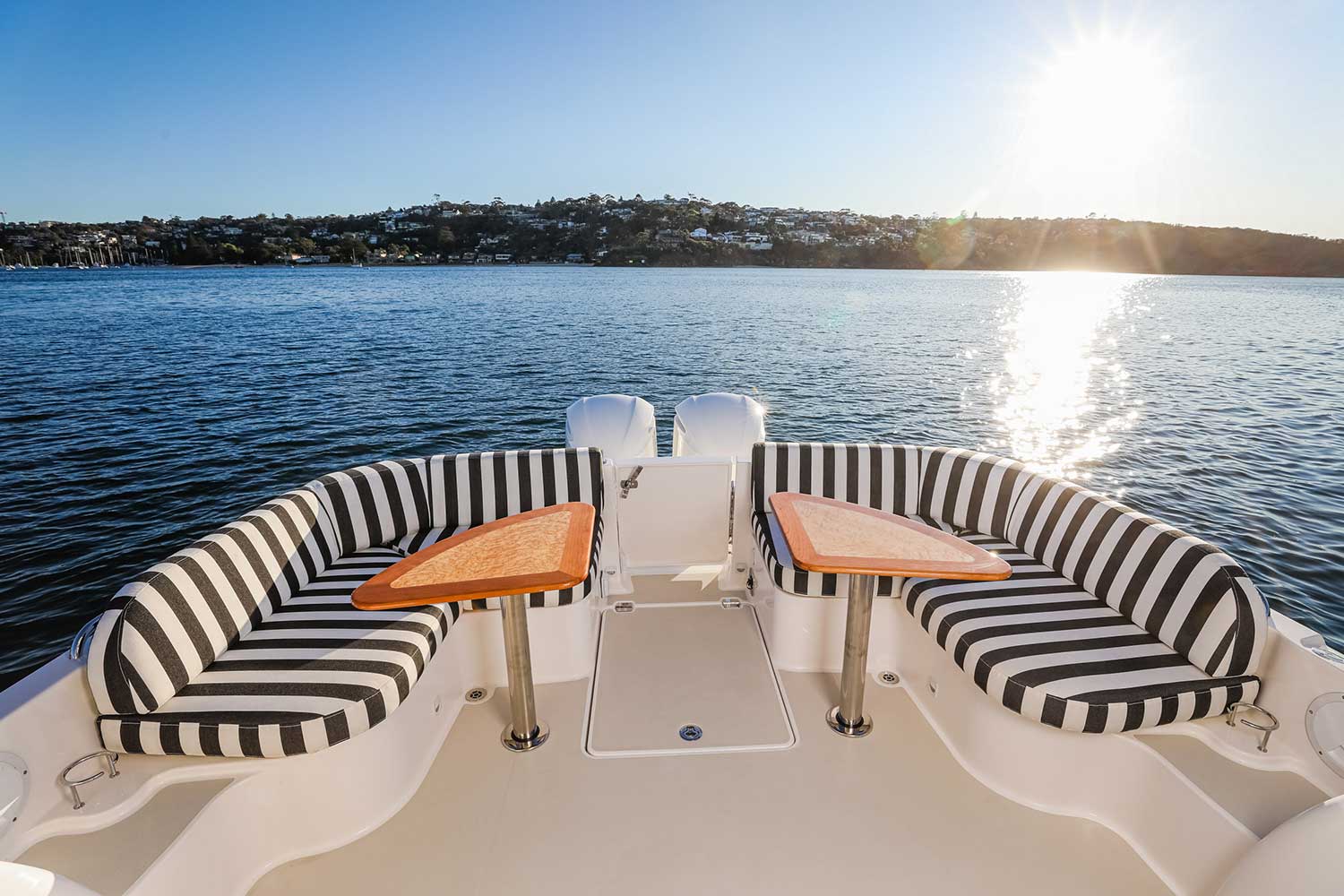

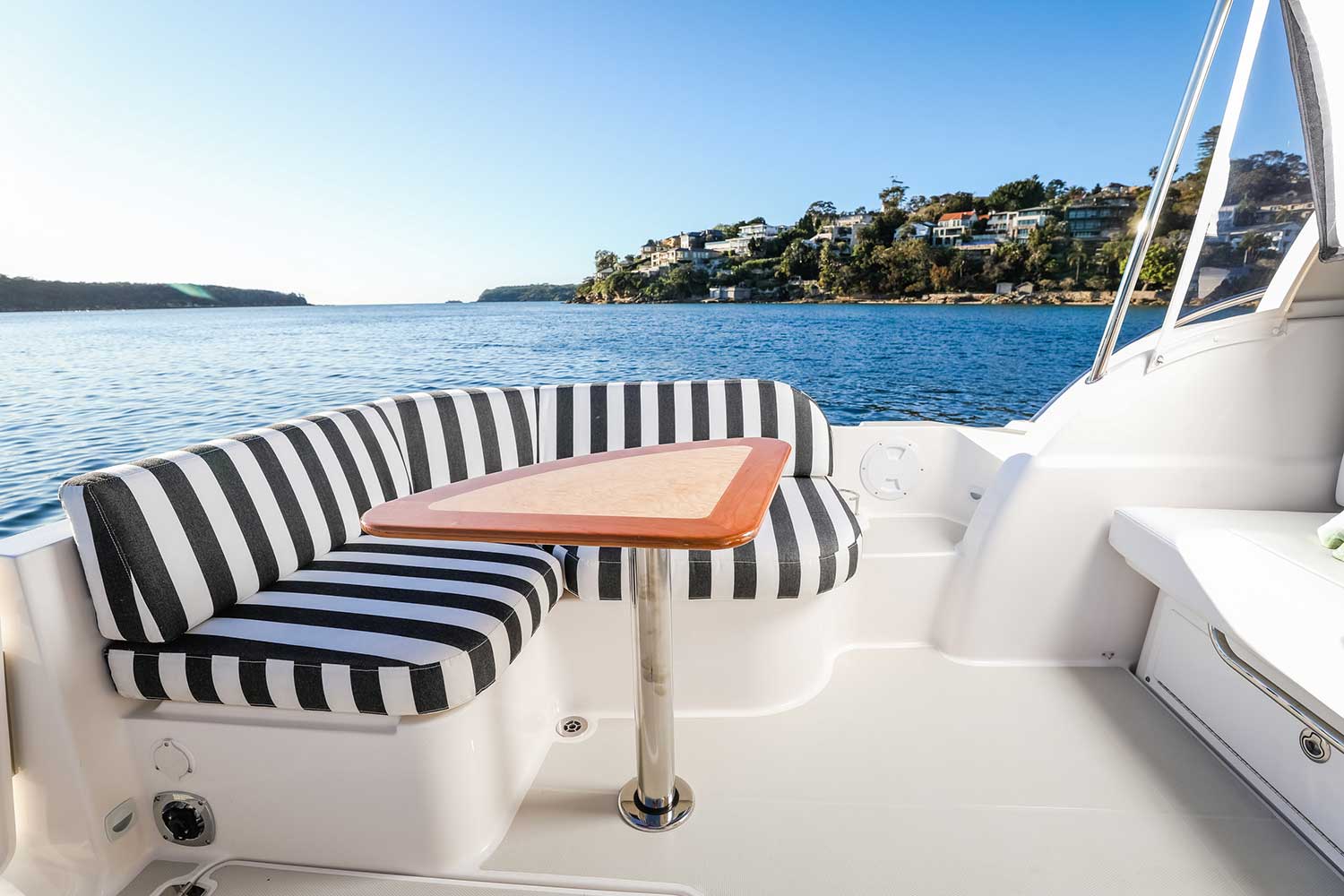

The cockpit has been designed for entertaining, with an aft-facing seat that converts into a helm deck U-shaped dinette or a second berth.

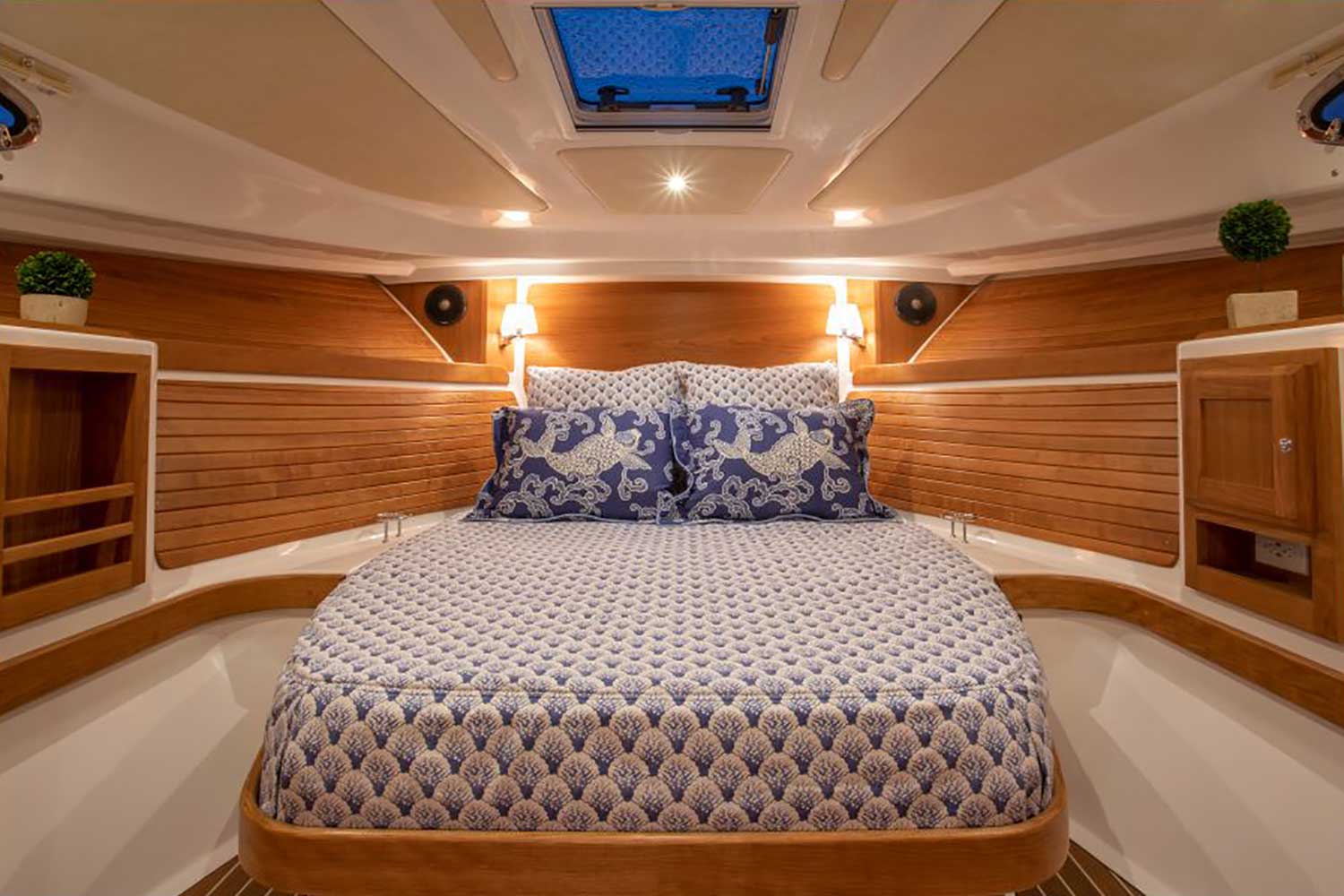

The boat features plenty of cruising amenities, including a standard 5kW diesel generator cabin A/C below deck and offers a comfortable queen-sized island berth outfitted with storage drawers and spacious outboard shelves.

Aft of the berth, it features a split head and shower unit that ensures owners are comfortable no matter how long their journey.

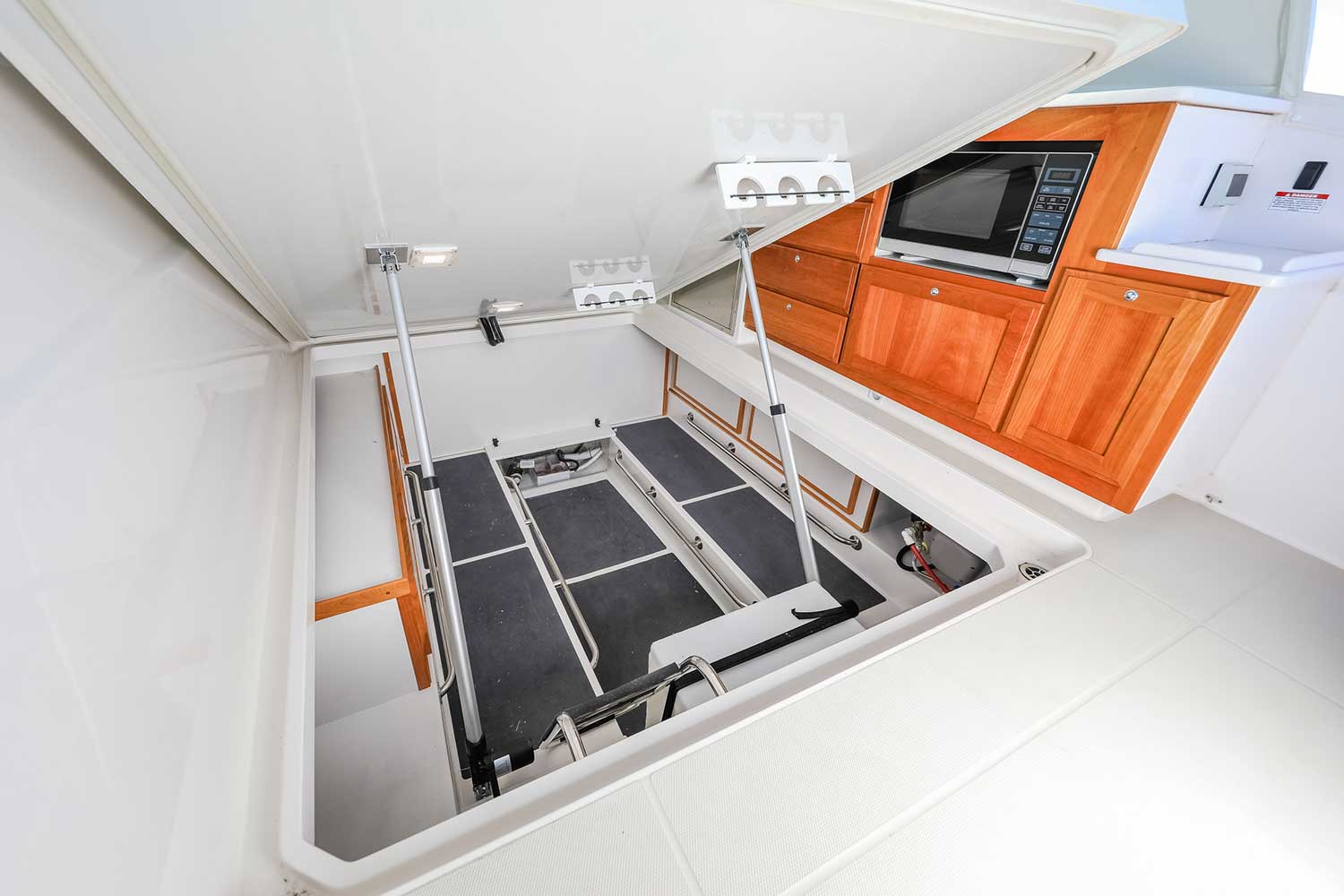

Extra provisions, water toys, and other accoutrements will find their perfect home in the Back Cove 34O’s sizeable storage space, conveniently located beneath the salon sole.

Australian commissioned and delivered with factory and dealer added options she includes:

– Greystone Hull Colour with Black Boot Stripe
– Ultraleather Helm Deck Seating
Custom White Painted Engines
– Trim Package ( Inc cherry dash, cherry overhead grab rails, padded
panels, cherry battens, P&S storage room lockers, rod holders under
hatch)
– Electric anchor windlass with polished stainless-steel anchor and galvanised
chain rode
– Auto OB flushing system
– Joystick system with EPS and GPS anchor hold
– Raw water washdown fore and aft
– Centreline cockpit seat and back fillers
– Mast for hardtop
– 2x removable cockpit tables
– Garmin 8616 MFD, GPS/MAP/DEPTH
– Garmin 315i VHF
– Garmin Autopilot
– Custom matched Canvas package: Cockpit seat covers, table covers,
helm deck window covers, helm deck drop curtains
– Matched docking lines and fenders with covers
– Safety equipment package, inc. 12x PFD’s and EPIRB
– Boat Hook

Extensive Standard Equipment:

Hull

● Modified ‘V’ planing hull w/ TrELiS Ⓓ
● Back Cove white iso-npg gelcoat w/ vinylester backup resin
● VIP Resin Infused Hull w/ PVC foam core bottom and topsides
● VIP Resin Infused foam core stringer system w/ integrated stabilizer
tapping plates
● Painted boot stripe
● Moulded cove stripe depression w/ “gold leaf” style stripe and
Back Cove Heron

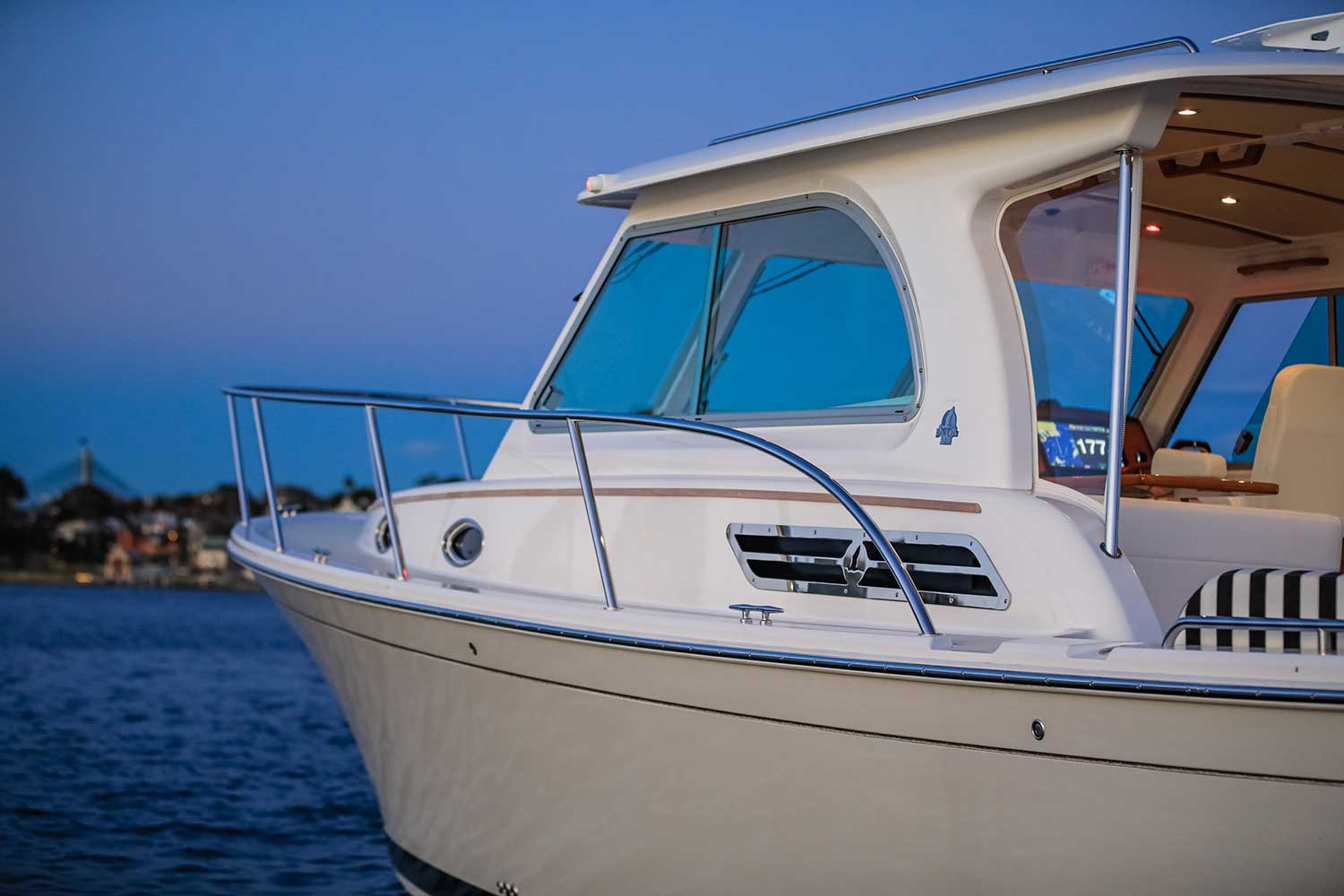

Deck

● Back Cove white gelcoat w/ graystone anti-skid on walking surfaces
● VIP Resin infused balsa core sandwich structure
● Mooring cleats forward, aft and mid-ship (aft cleats are pull-up style)
● Stainless steel anchor roller weldment
● Anchor locker w/ ground tackle storage
● Stainless steel flagstaff receiver
● Removable burgee staff
● LED hard top mounted running lights all-around anchor/ nav light

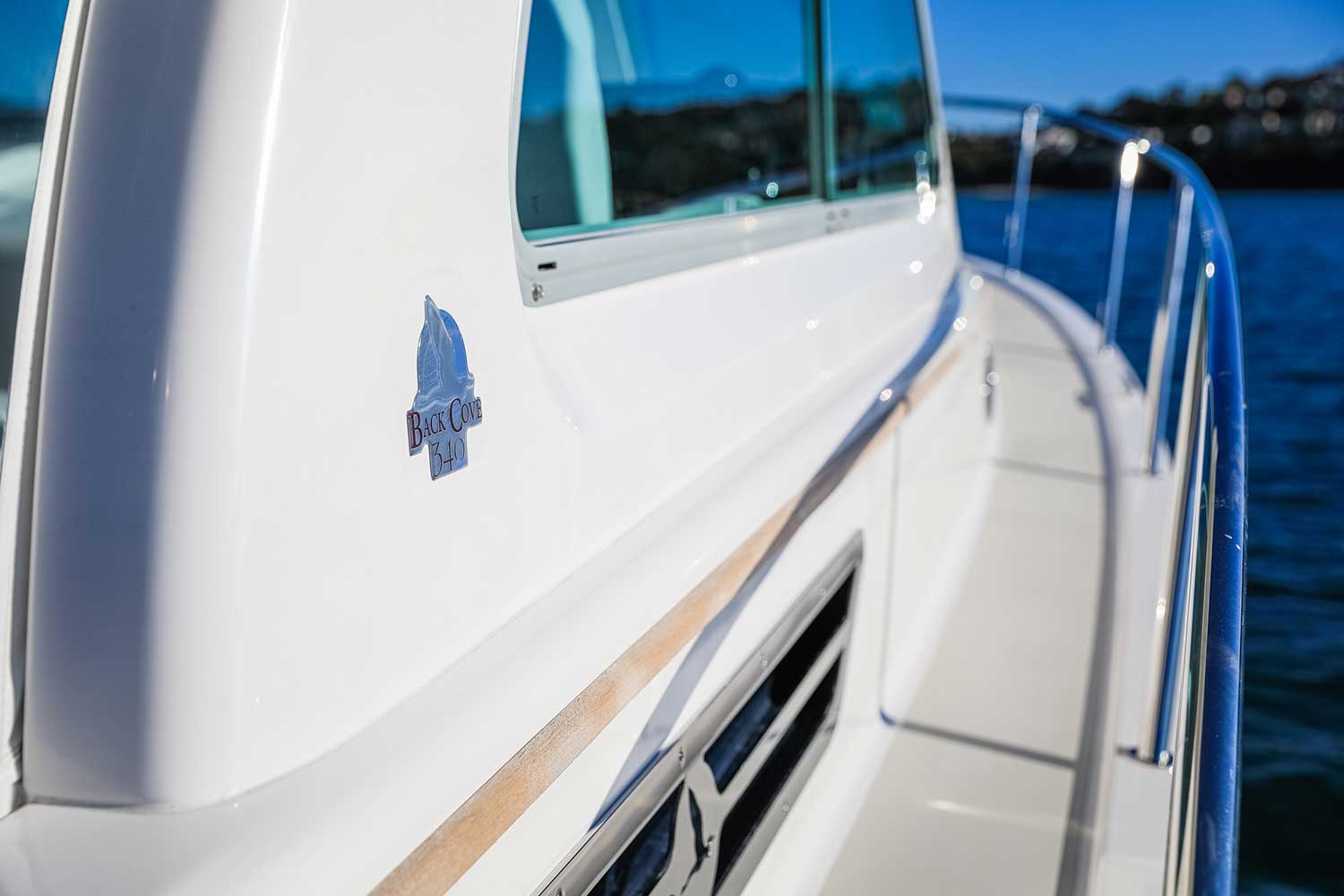

● Teak accent stripe on cabin side

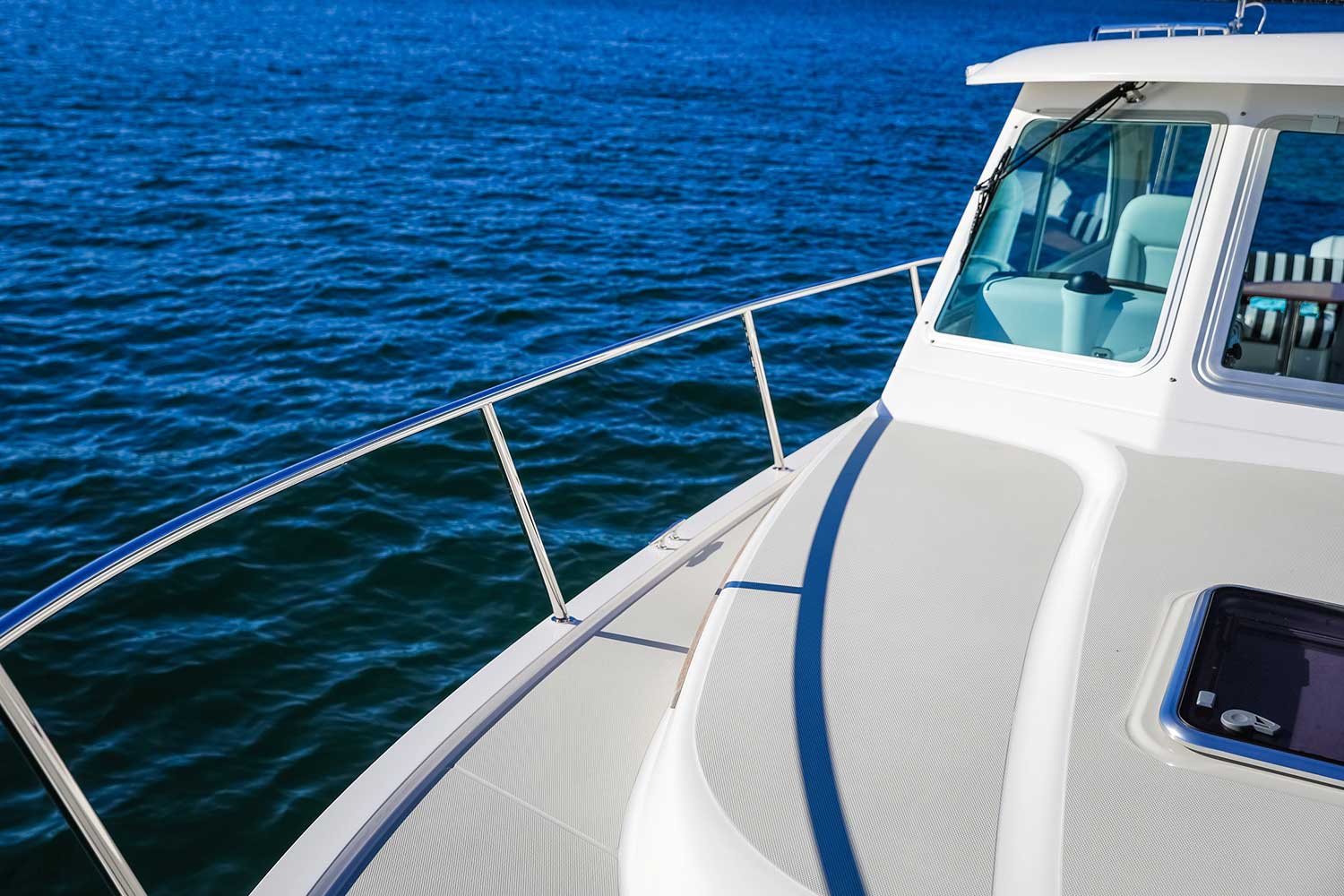

● Custom 1-1/4’’ 316L stainless steel perimeter rail
● SS handrails on hard top, port and starboard
● Compressed air horn on hard top (mast optional)
● (4) opening port lights w/ insect screens and shades
● Port & starboard moulded steps leading to side and fore deck
● Moulded quarter seating in cockpit w/ storage, port, and starboard
● Transom door on centreline
● Cockpit hatch to lazarette
● P&S swim steps w/ SS under-mount swim ladder on starboard side
● Hot and cold cockpit shower
● Self-draining cockpit
● Acrylic, companionway sliding door with screen
● Cockpit grab rails behind cockpit seats on coaming
● Swim step engine well w/drain and hinged hatch cover
● Transom mounted grab rails

Fuel System

● 242 US gallon aluminium fuel tank w/ 1.5” deck fill to port; vented with
overfill protection
● 25 US gallon vented cross-linked polyethylene diesel tank w/ 1.5” keyed
deck fill on transom
● Fuel/water separating filters w/anti-siphon fuel valves
for each engine
● Racor fuel/water separator filter for generator

Mechanical Systems

● Twin Yamaha 300hp V6 Custom painted to match deck

● 4 blade, stainless  propellers
● Binnacle mount Yamaha twin engine control
● Electronic steering
● Electric actuated, Zipwake dynamic control system w/auto control
● Sleipner bow thruster w/ joystick control (SE50)
● Hot and cold pressurized water
● 11 gallon water heater w/ pressure relief valve plumbed to thru-hull
● Marelon sea valves on underwater thru-hulls
● Below deck air conditioning w/ reverse cycle heat 8kBTU
● Xintex-Fireboy automatic, clean agent fire extinguishing system in
lazarette w/ manual backup
● Bronze raw water strainer on generator and AC intakes
● Portable fire extinguishers in all accommodation spaces

Electrical Systems

● 5 kW Onan genset with sound shield and water/exhaust separator
● AC/DC control panel with polarity indicator
● 12Vdc system battery management switching
● 12Vdc breaker for electronics
● Emergency engine battery cross-over switch (manual)
● 230Vac  shore power inlet w/ 50 foot cord
● 230Vac shore power system ELCI protected
● Galvanic isolator
● GFI protected 230Vac outlets
● 80 Amp battery charger
● (2) 4D AGM house battery wired parallel; (1) Group 31 AGM battery for
each engine; (1) Group 31 battery for bow thruster/windlass
● Auto cross-over switch (ACR) for thruster/windlass and house bank
● (3) 12Vdc automatic bilge pumps and (2) bilge high water alarms
● Bonding system w/ zinc transom anode
● LED storage room and lazarette lighting
● Cockpit courtesy lights switched at transom door and helm
● Overhead LED cabin and salon lights (w/ dimmer control)
● Reading lights in salon and berth area
● Overhead bi-color LED helm deck light w/ switch
● 12Vdc outlet at helm and in cabin
● Battery powered salon and cabin smoke detectors
● Hard-wired CO detector in cabin and salon

Head / Sanitary System

● Head to port w/ separate shower stall to starboard
● Moulded seat in shower stall
● Built-in vanity w/ sink and storage
● Borrowed light in head with privacy glass
● Stainless steel opening ports w/ insect screen and shade
● Cherry framed mirror
● Solid surface countertop
● Single lever faucet
● Shower-drain sump pump system
● Fresh water electric MSD
● Macerator for holding tank overboard discharge (as permitted)
● Holding tank pump-out fitting on deck
● Sealed overhead LED lighting (w/ dimmer control)
● Powered exhaust fan in head and shower
● Waste and fresh water level gauge

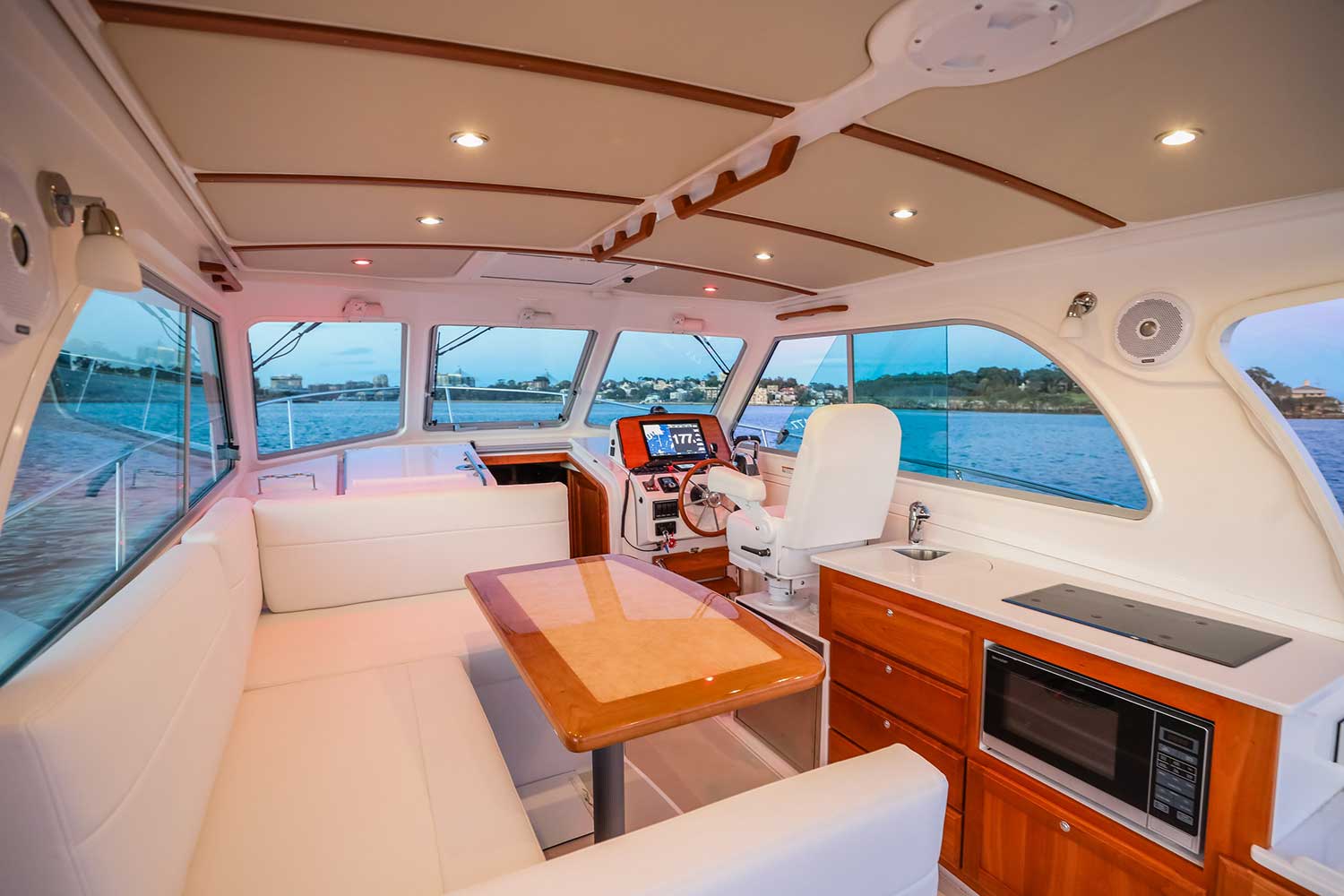

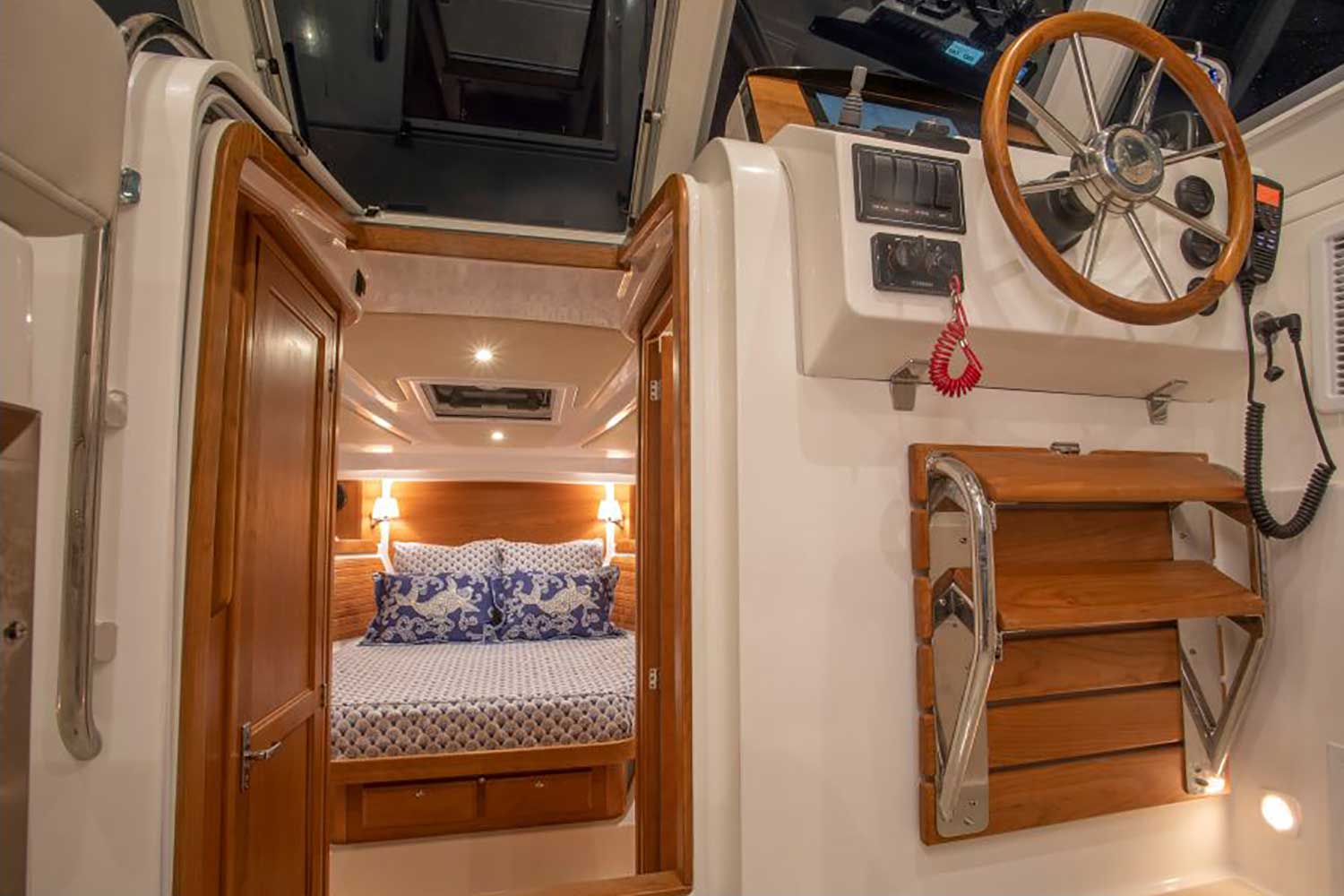

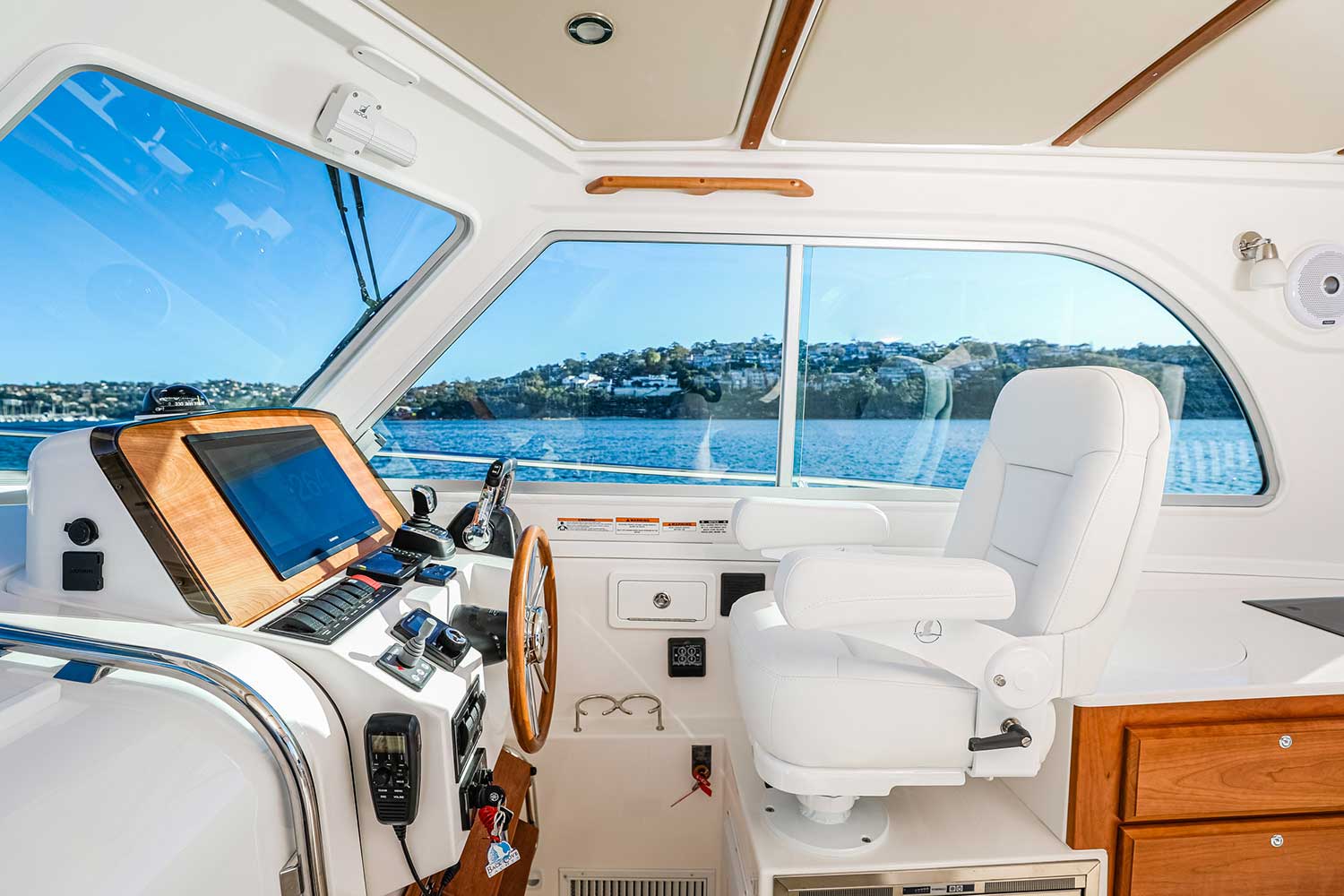

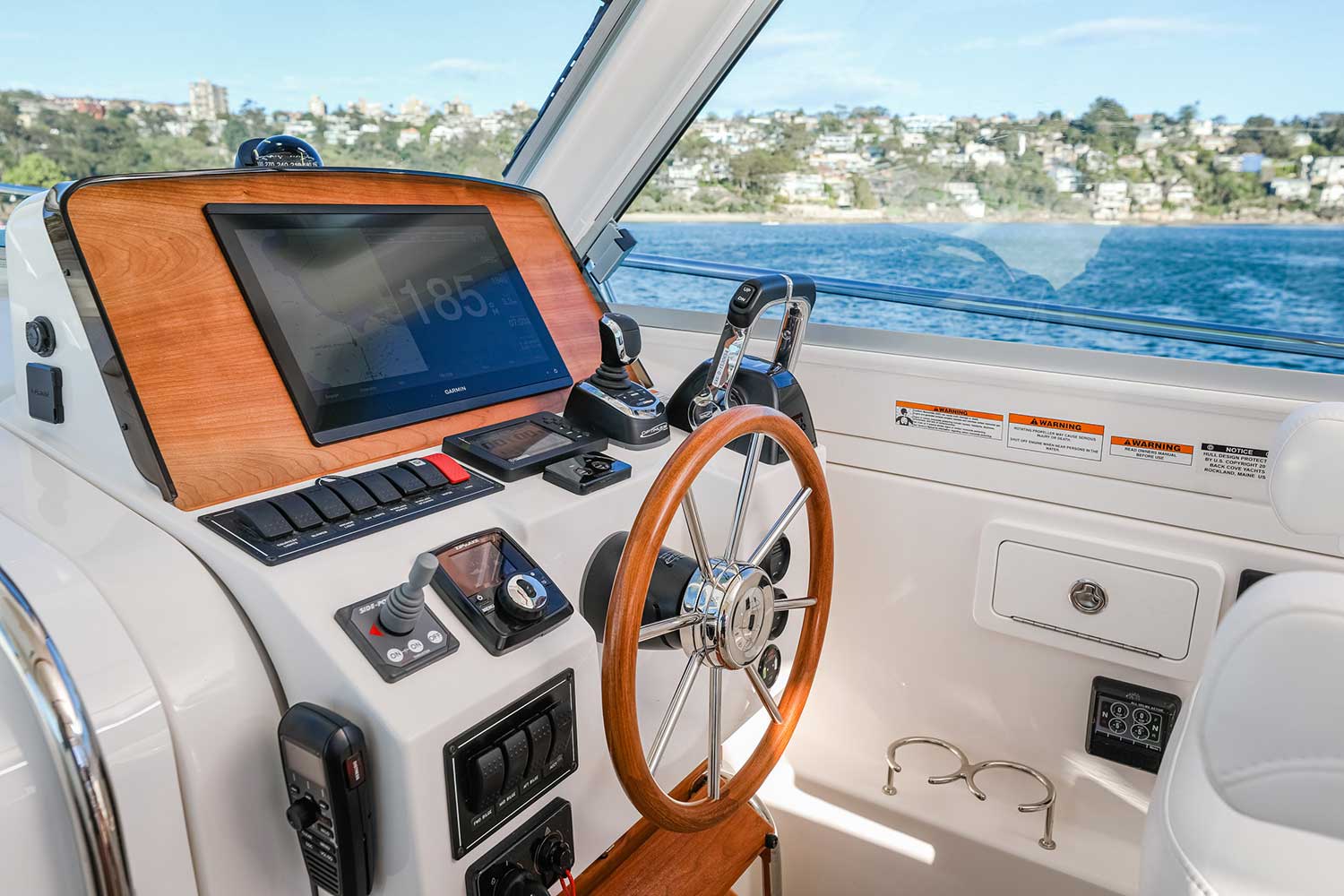

Helm Deck

● Opening, framed center window
● (3) windshield wipers w/fresh water wash and intermittent control
● Lewmar sliding hatch w/ OCEANair Skyscreen
● Compass, illuminated
● 16” wood grain steering wheel
● Llebroc helm seat
● Fixed, helm foot rest (folds down for helm step)
● Helm deck storage hatch opens by electrical linear actuators
● Stainless tie down rails in salon storage room
● 230 Vac outlet in salon storage room

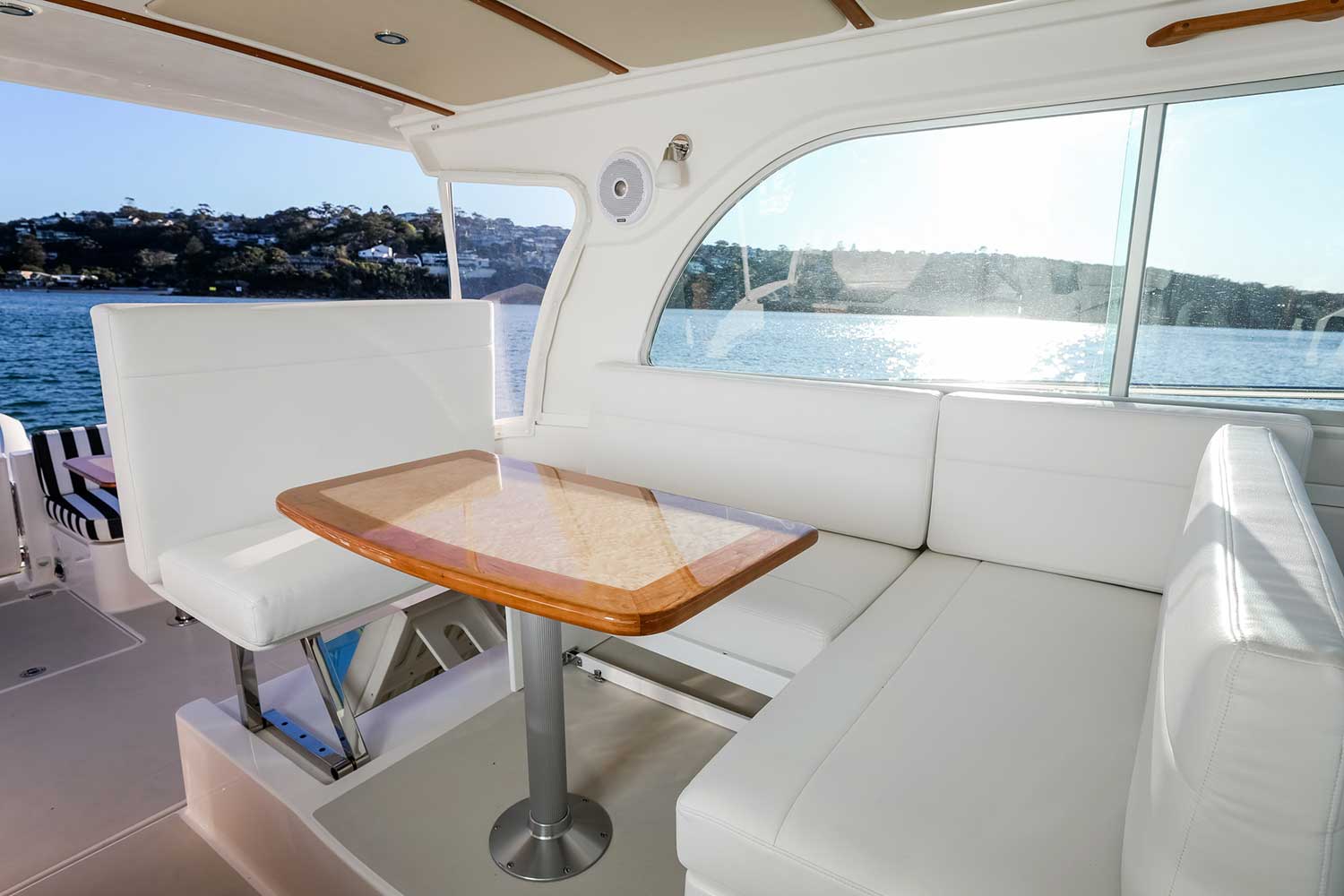

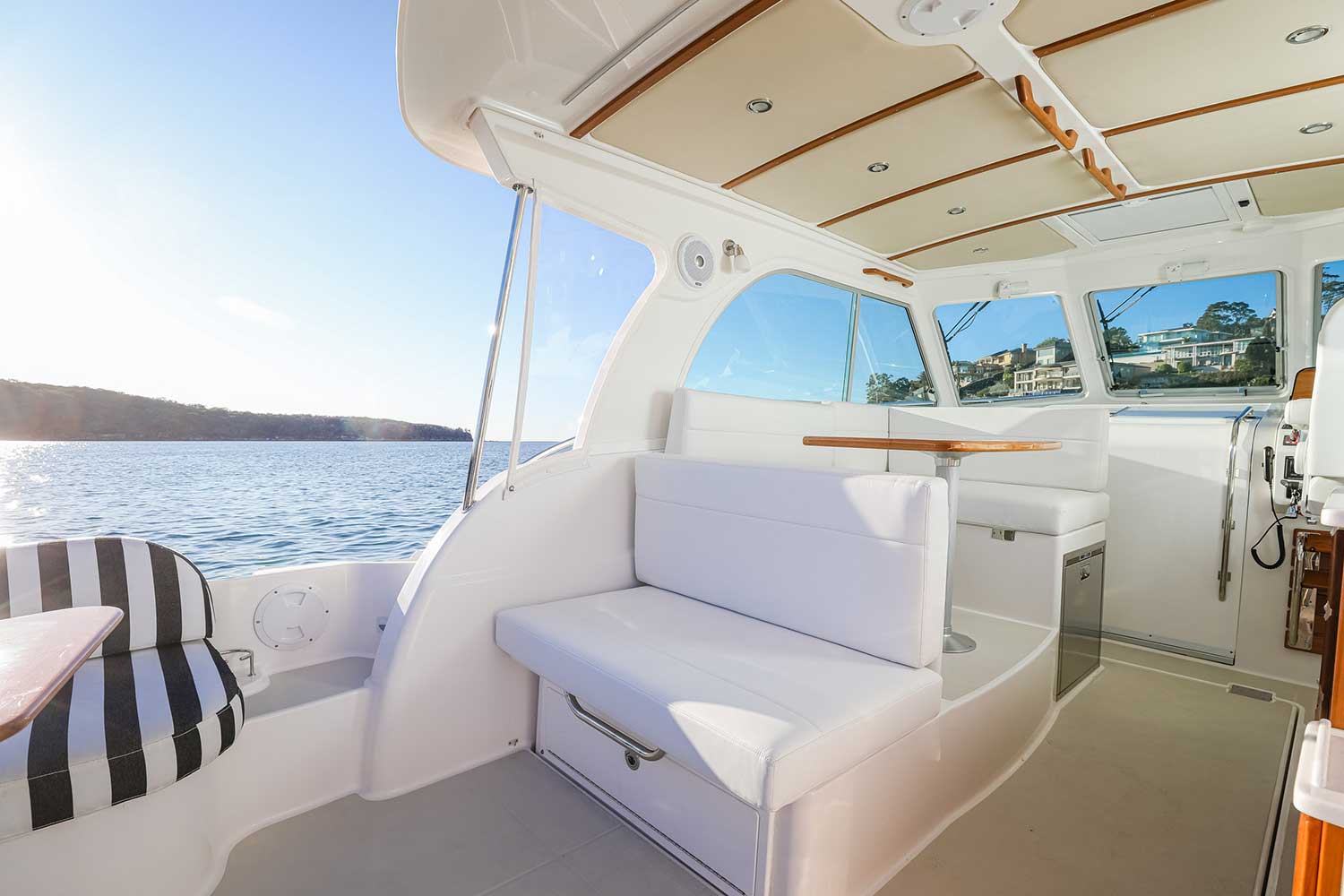

● Convertible dinette with Back Cove high gloss inlaid table
● Mates seat back converts for helm or settee positioning
● Aft dinette seat converts to face cockpit
● Storage locker beneath dinette seating
● Charging station (AC/DC/USB)
● 6.5 inch, 200 Watt Fusion speakers
